Completed Wooden Cabin / Summer House

A cabin build by Woodcraft UK. Part 2 of 2

Posted on March 24, 2020

Following on from our previous post: A cabin build by Woodcraft UK. - Part 1, we have completed and installed this project.

We had a commission from a new customer to build a completely new product that we had not made before. This is a wooden cabin / summer house, built to the customer's requirements to fit a small back garden / patio area.

Drawing of side elevation of wooden cabin
Drawing of Wooden Cabin in a finished state

We designed various mock up cabins in 3D so that the client could make a decision on style of summer house based on their preference. Work began and we constructed the cabin in our workshop.

Click on the pictures to enlarge

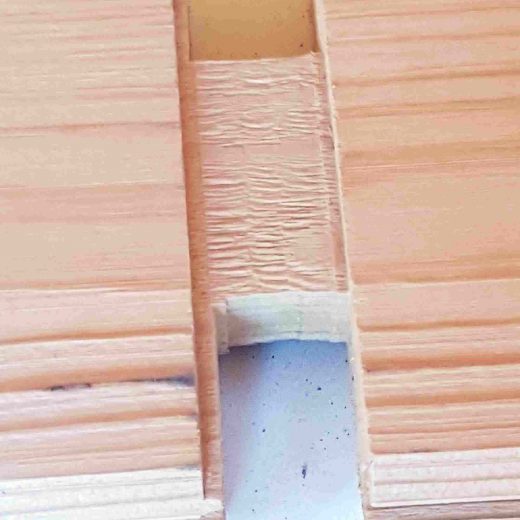

The interlocking joints for the summer house
Working on the wooden joints for the summer house

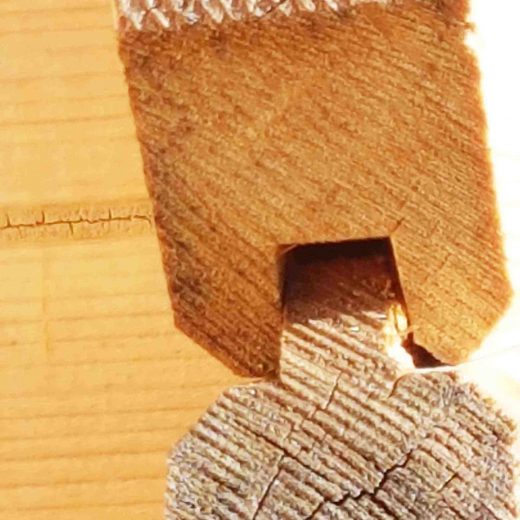

Detail of Scandinavian interlocking joints

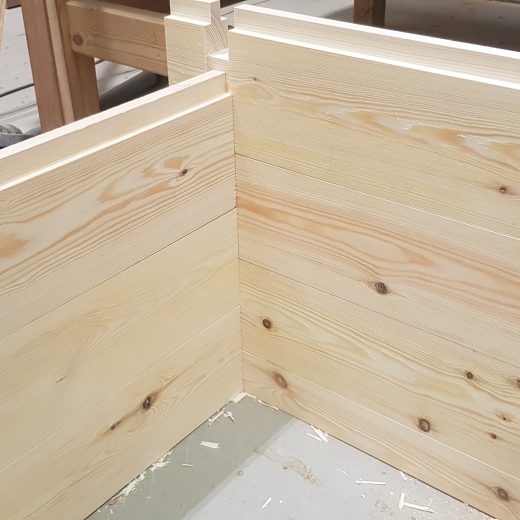

Joining the cabin

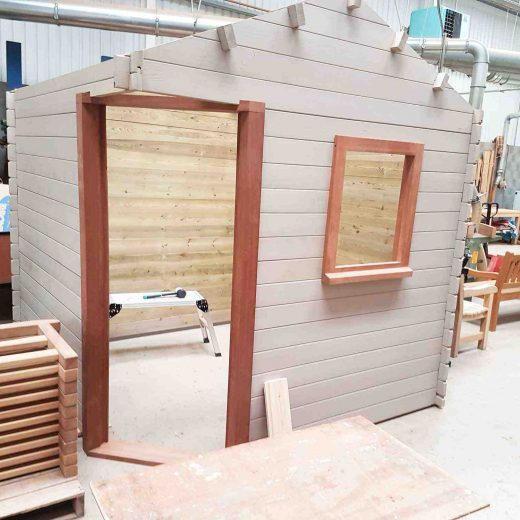

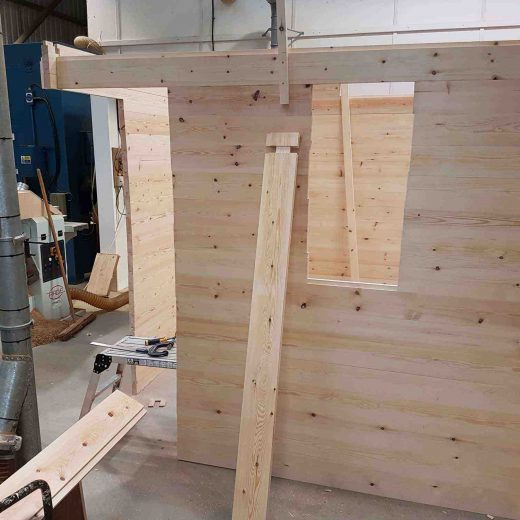

Assembling the wooden cabin in our workshop
Wooden cabin assembly

The cabin was built with Scandinavian interlocking corners, and all corners were jointed and removable for ease of transportation and assembly on site.

We manufactured everything in our workshops and did a trial assembly in the workshop before sending it out to the customer.

Concrete base for the Wooden Cabin

The customer had a new level concrete base laid prior to installation. Ensuring you have level foundations is very important for the longevity of the summer house as ensuring efficient run off of rain water helps to prevent damp areas forming which over time could cause wood rot.

Click on the pictures to enlarge

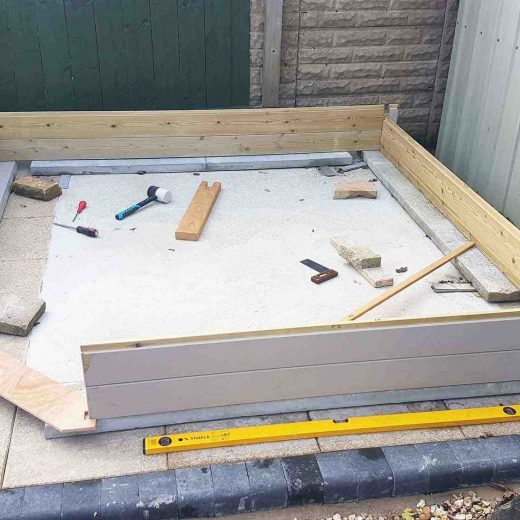

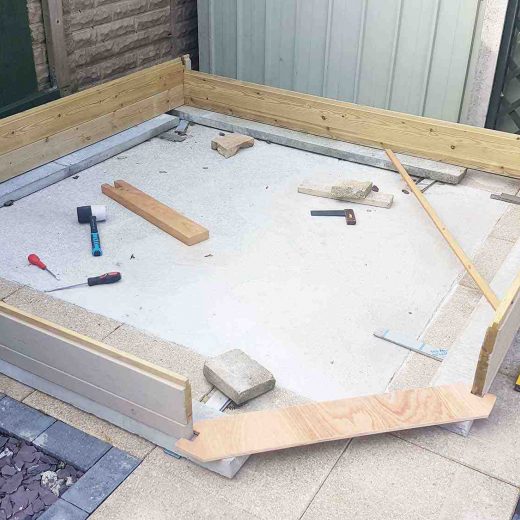

Measuring out the wooden cabin base
Installing the wooden base onto the concrete foundations.

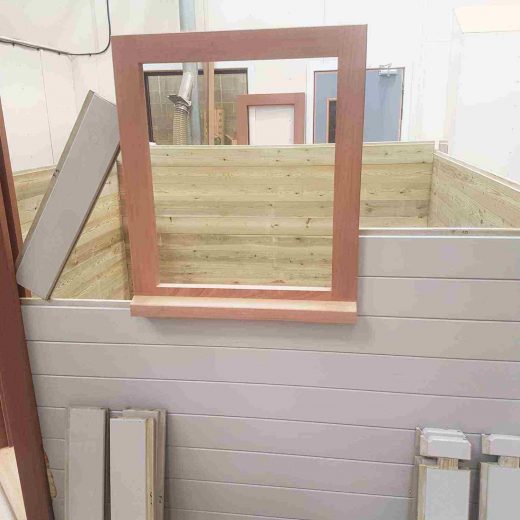

Constructing the walls of the wooden cabin and fitting the window

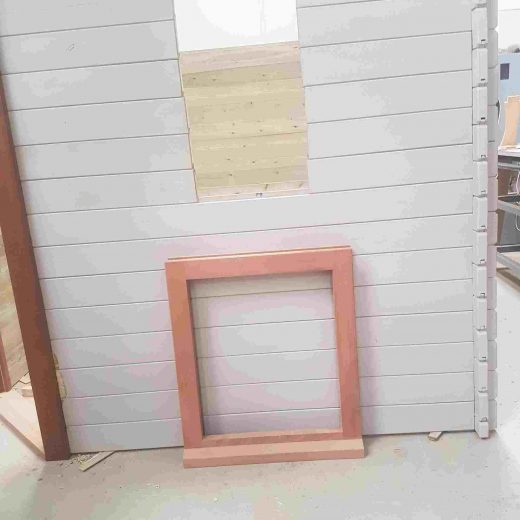

Window frame of the wooden cabin

After levelling out the lowest parts of the walls and making it square we built up the sides and installed the hardwood door and window as we went. The inside floor was laid on to some slimline concrete sleepers which had strips of DPC (damp proof course) on them to stop and moisture rising from the external base.

Click on the pictures to enlarge

Fitting the EPDM roof of the wooden cabin

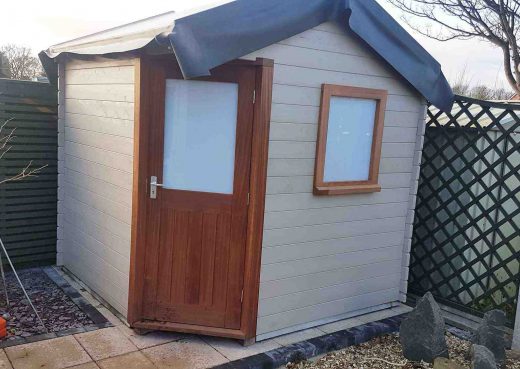

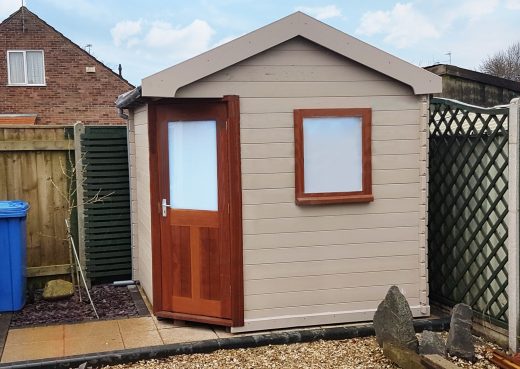

Completed Wooden Cabin / Summer House

The roof went on then it was covered with an EDPM (ethylene propylene diene monomer or synthetic rubber roofing membrane) which is guaranteed for at least 25 years.

Guttering and downpipes went on, and the window and door were glazed with unbreakable clear polycarbonate sheeting.

Once the roof and windows had been installed the cabin was completed and we are very happy with it as is the customer!
